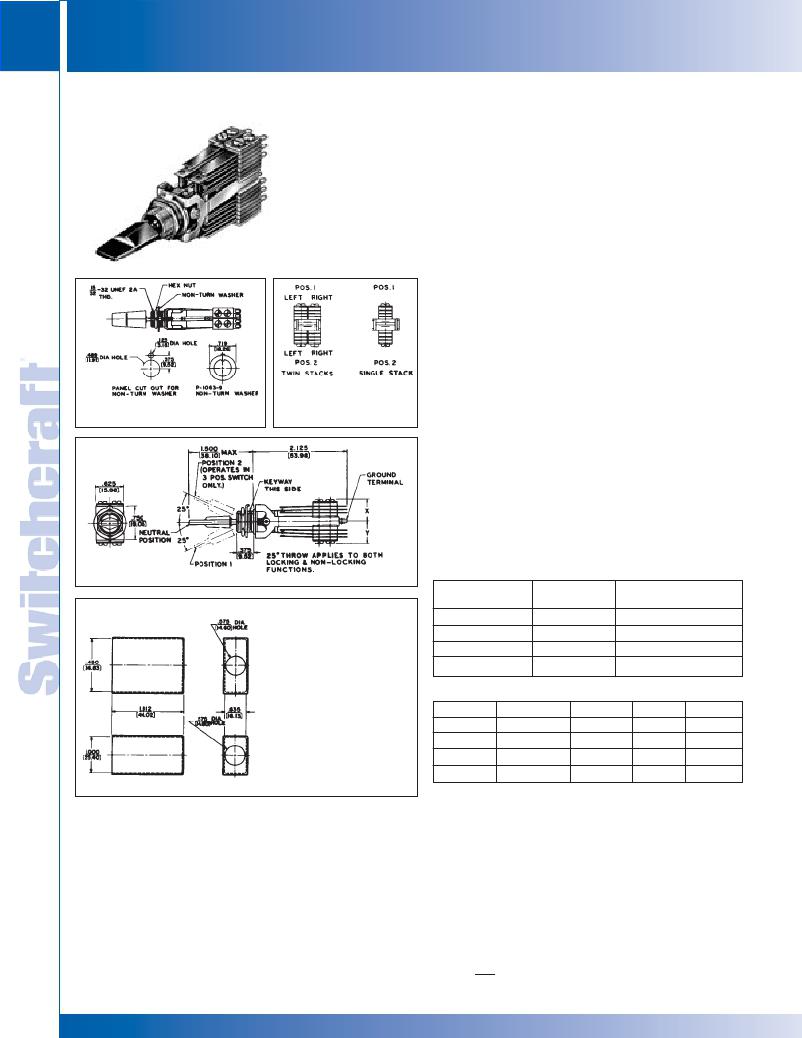

LT SWITCH – SERIES 4100
PHONE: 773 792-2700
298
SWITCHES
?
* Please visit the product pages on our website for the most up-to-date product information
LEVER SWITCHES (CONTINUED)
SERIES 41000
PANEL OPENING
.469" (11.91mm) DIAMETER
LT ? SWITCH
SPECIFICATIONS
Frame: Steel, plated.
Bushing and Actuator: Copper alloy, plated.
Springs: Copper alloy.
Contact Ratings: Welded cross bar palladium contacts
rated at 2A, 200W maximum, AC non-inductive load are
standard. See “SPECIAL ORDER FEATURES”.
Terminals: Tin dipped solder lugs.
Mounting Hardware: Supplied with one copper alloy-plated
hex locknut (P10531); and one non-turn washer (P10639).
Insulation: Rigid plastic spacers with plastic tubing
through
the stack assembly. Lifters of thermoplastic.
Lifter-Roller Assembly: Molded plastic.
Knob: Supplied with a paddle style, screw-on black plastic
knob. See “SPECIAL ORDER FEATURES”.
Temperature Range: -22°F to 158°F (-30°C to +70°C).
Leakage Resistance: 1,000 M ? or greater.
MOLDED DUST COVERS
Dust cover is an environment and electrical shield, protecting
LT SWITCH SERIES 41000
?
LT ? SWITCH
SERIES 41000
MAXIMUM PANEL THICKNESS
.25" (6.35mm)
and improving appearance and increasing switch dependability.
Covers enshroud complete switch, preventing build-up of
dust, dirt, contamination.
SPECIAL ORDER FEATURES
1. Talk-Listen (Intercom) function.
2. Fine silver and other alloys available for contacts.
See page 294.
3. UL recognized switches. See page 294.
LT ? SWITCH PART NUMBERS
2 POSITION NON-LOCKING*
Stack Heights
MOLDED DUST COVER
P2362
(up to 4-C per side)
Part Numbers
? 41203
41206
? 41208
41212
Switching
1-C
2-C
4-A
4-C
Dimension “X” max.
.531 (13.49)
.531 (13.49)
.615 (15.62)
.750 (19.05)
3 POSITION NON-LOCKING*
Position 1
Position 2
Dim. “Y”
Dim. “X”
? 41306
1-C
1-C
.531 (13.49) .531 (13.49)
P2360
? 41308
2-A
2-A
.500 (12.7)
.500 (12.7)
(up to 2-C per side)
41312
41324
2-C
4-C
2-C
4-C
.531 (13.49) .531 (13.49)
.750 (19.05) .750 (19.05)
*Add suffix “L” to part number for locking type.
To avoid ordering special switches, order a larger standard circuit,
providing the circuit meets your requirements.
? Special order only; contact Switchcraft.
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
